GRAFX™ THERMAL TECHNOLOGY
GrafX™ is an advanced thermal-management technology platform designed to spread localized heat, buffer transient thermal loads and improve temperature uniformity in high-performance battery systems.
By combining highly conductive thermal structures with phase-change thermal buffering, GrafX™ can be engineered around different battery architectures and thermal requirements.
THE THERMAL CHALLENGE
Managing Heat Where High-Power Batteries Need It Most
High-power battery operation can create localized hotspots, temperature gradients and transient thermal loads. Effective thermal architecture is therefore an important part of battery-system design.
OUR THERMAL TECHNOLOGY
Introducing GrafX™
Engineered to Manage Thermal Energy.
GrafX™ is a thermal-management technology platform incorporating graphite-PCM composite materials and engineered thermal architectures.
With multiple material configurations and form factors, GrafX™ can be engineered to meet specific thermal, mechanical and integration requirements.
HOW GRAFX™ WORKS
From Localized Heat to More Uniform Temperature
GrafX™ surrounds selected battery cells with a highly conductive thermal structure and phase-change material (PCM) to spread localized heat and buffer transient thermal loads.
01 — LOCALIZED HEAT
During high-power operation, localized heat can generate thermal hotspots across battery cells.
02 — GRAFX™ SPREADS AND BUFFERS HEAT
The GrafX™ structure provides a highly conductive pathway for lateral heat spreading while phase-change material helps absorb and buffer transient thermal loads.
03 — MORE UNIFORM TEMPERATURE
The objective is a more uniform temperature distribution across the cells and battery structure, reducing thermal gradients during demanding operation.
BATTERY INTEGRATION
Engineered Around Different Battery Architectures
GrafX™ can be configured around different cell geometries and pack architectures to address localized thermal loading and temperature non-uniformity.

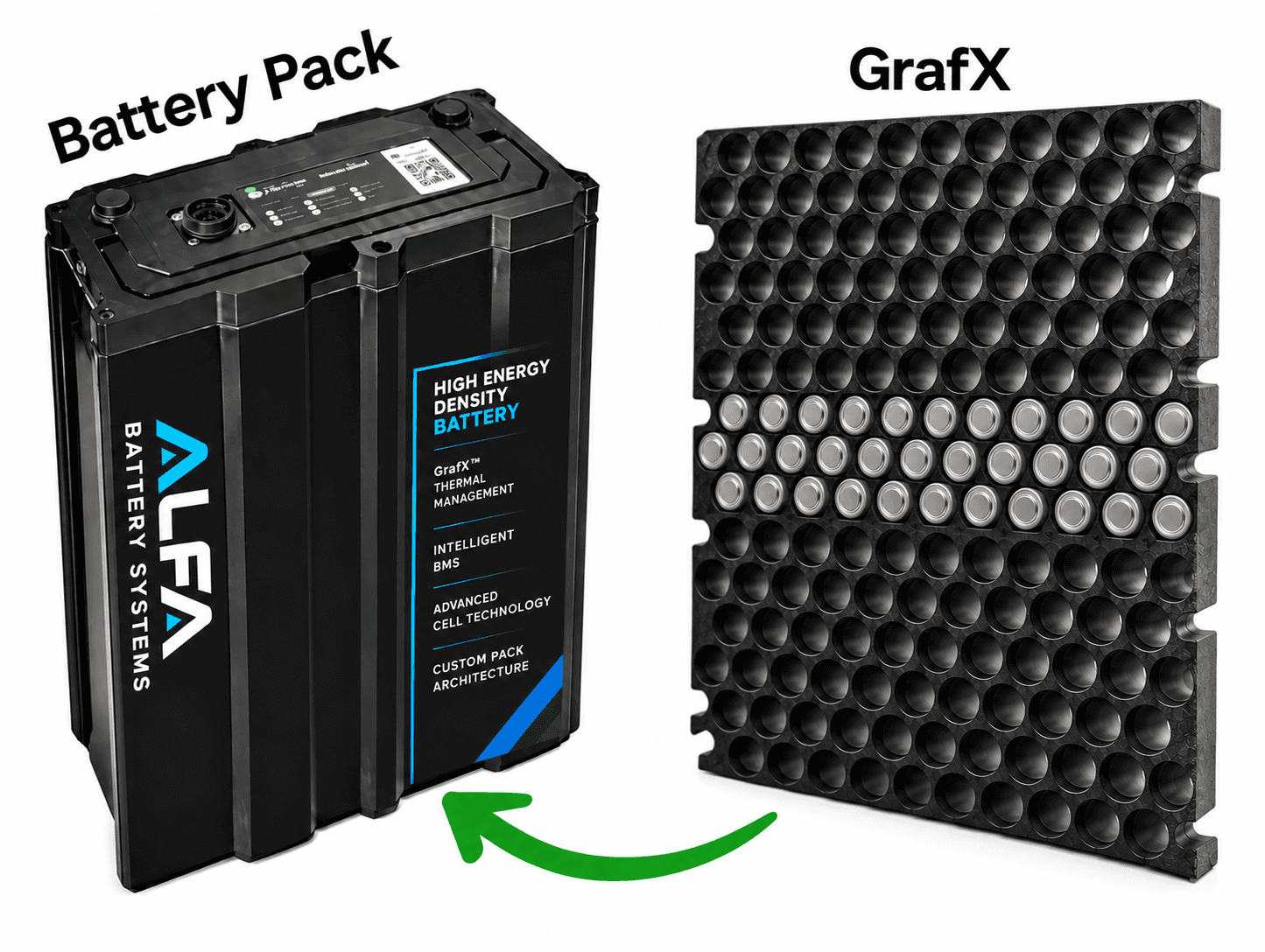

CYLINDRICAL CELLS
GrafX™ Cell Holders
Engineered structures that surround cylindrical cells and provide integrated thermal spreading and buffering.
STATUS: COMMERCIALIZED
POUCH & PRISMATIC CELLS
GrafX™ Thin Sheets
Thin thermal structures designed for heat spreading and thermal buffering in pouch, prismatic and selected electronic applications.
STATUS: COMMERCIALIZED
KEY ADVANTAGES
Designed for Demanding Battery Applications
HIGHER POWER CAPABILITY
Improved thermal management can support demanding battery power requirements.
MORE UNIFORM TEMPERATURE
Heat spreading and thermal buffering can reduce localized temperature gradients.
THERMAL BUFFERING
Phase-change material helps absorb and buffer transient thermal loads.
INTEGRATION FLEXIBILITY
GrafX™ can be engineered in different forms, geometries and configurations to match application requirements.
LIGHTWEIGHT • MULTIPLE FORM FACTORS • APPLICATION-SPECIFIC DESIGN
PERFORMANCE & VALIDATION
Thermal Performance Demonstrated Through Testing & Modeling
Selected laboratory testing and thermal modeling demonstrate the thermal-management behavior of GrafX™ under demanding battery operating conditions.
Results shown represent specific test configurations and simulation conditions. Actual thermal performance varies with cell chemistry, battery architecture, thermal design, discharge rate, duty cycle, ambient conditions and system integration.
VIEW PERFORMANCE DATA →
GRAFX™ CONFIGURATIONS
Multiple Forms. One Thermal Platform.
GrafX™ can be engineered in different forms to match battery geometry, thermal requirements and integration constraints.
01
GrafX™ Cell Holders
STATUS: COMMERCIALIZED
Integrated Battery Thermal Management
Engineered thermal structures for cylindrical battery cells.
02
GrafX™ Thin Sheets
STATUS: COMMERCIALIZED
Thermal Spreading & Buffering
Lightweight thermal-spreading and buffering structures for batteries and selected electronic systems.
03
GrafX Pulse™ - TIM, Heat Spreaders, Heat Sink
STATUS: PROTOTYPE • IN DEVELOPMENT
Ultrathin Thermal Solutions
An emerging GrafX™ architecture being developed for ultrathin thermal spreading and thermal buffering applications.
04
GrafX™ Cold Plates
STATUS: CONCEPT • FUTURE DEVELOPMENT
High-Heat-Flux Thermal Transfer
Conceptual thermal architectures under development for batteries, data centers, power electronics and other high-heat-flux applications.
EMERGING GRAFX™ TECHNOLOGY
GrafX Pulse™
Ultrathin Thermal Solutions for High-Performance Electronics
GrafX Pulse™ is an emerging extension of the GrafX™ platform for ultrathin thermal-management applications where space, weight and localized heat loads are critical.
ULTRATHIN & LIGHTWEIGHT
Designed for space-constrained applications.
THERMAL SPREADING & BUFFERING
Designed to spread heat and buffer transient thermal loads.
MULTIPLE FORM FACTORS
Engineered for application-specific geometries.
LEARN MORE ABOUT GRAFX PULSE →
GRAFX™ TECHNOLOGY DEVELOPMENT
COMMERCIALIZED
GrafX™ Cell Holders
GrafX™ Thin Sheets
PROTOTYPE / IN DEVELOPMENT
GrafX Pulse™
CONCEPT / FUTURE DEVELOPMENT
GrafX™ Cold Plates
ALFA continues to develop the GrafX™ platform for increasingly demanding thermal-management applications.
OEM THERMAL ENGINEERING
Tell us about your cell chemistry, power requirements, operating environment, pack geometry and thermal constraints. ALFA™ can evaluate whether a GrafX™ architecture is appropriate for your application.
